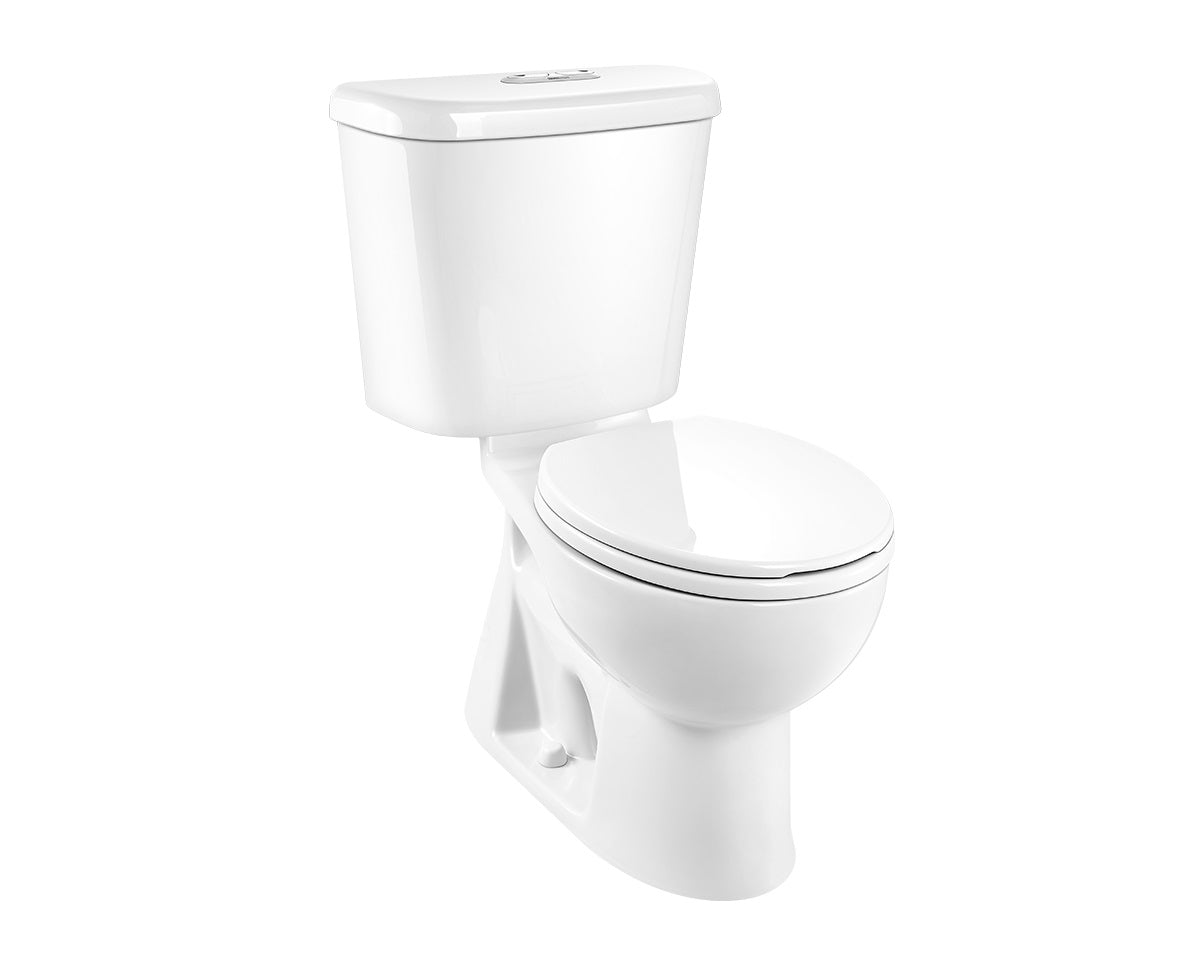

Sydney Smart II Easy Height Elongated (302100W / 305102W)
The Caroma Sydney Smart II Easy Height Elongated Dual-flush Toilet is a two-piece toilet that
utilizes gravitational force to efficiently evacuate waste, contrasting with traditional siphonic
toilets. This innovative approach substantially minimizes water usage while maintaining powerful
flushing performance.
Unparalleled Clog Prevention: Designed for optimal efficiency, the Sydney Smart II
Easy Height boasts Caroma's signature trapway, which is fully glazed and twice the size of the
industry standard. This engineering marvel renders clogging virtually impossible, guaranteeing
reliable operation.
Standard Installation: The Sydney Smart II Easy Height features a standard 12" floor
rough-in, making it suitable for most residential and commercial installations. Its two-piece design
ensures easy installation and maintenance.
Advanced Flushing Technology: The Sydney Smart II Easy Height incorporates Caroma's
high-efficiency flushing system, which effectively cleans the bowl with each flush. This technology
not only simplifies cleaning but also maintains the toilet's hygienic state for extended periods.
Ergonomic Design and Accessibility: Despite its high-performance capabilities, the
Sydney Smart II Easy Height prioritizes user comfort. With an ADA-compliant bowl height of 16.5
inches, this model is thoughtfully designed to provide superior ergonomics while fully adhering to
accessibility standards, ensuring suitability for a diverse range of users.
Dual-Flush Efficiency: The Sydney Smart II Easy Height features a top-mounted
two-button dual flush system, offering 1.28 gallons for full flush and 0.8 gallons for half flush.
This innovative design allows users to choose the appropriate flush volume, further conserving water
without compromising performance.
Installation Guidelines
-
Remove Old Toilet: Shut off the water supply, flush the toilet, and remove any
remaining water. Disconnect the supply line and remove the old toilet.
-
Prepare the Flange: Clean the flange and inspect for any damage. Replace if
necessary.
-
Install Wax Ring: Place a new wax ring on the flange or on the bottom of the
toilet bowl.
-
Position the Bowl: Carefully lower the Sydney Smart II Easy Height bowl onto
the flange, aligning the bolt holes.
-
Secure the Bowl: Install the floor bolts and tighten them alternately until the
bowl is level and secure. Be careful not to overtighten.
-
Install Tank: Place the tank onto the bowl and secure it using the provided
bolts and washers. Ensure a proper seal between the tank and bowl.
-
Connect Water Supply: Attach the water supply line to the fill valve in the
tank.
-
Install Seat: Attach the included Caroma soft-close seat following the
manufacturer's instructions.
-
Test Flush: Turn on the water supply and test both flush options using the
top-mounted buttons to ensure proper function and check for leaks.
Maintenance
Regular cleaning and periodic checks of the dual-flush mechanism will help maintain the Sydney
Smart II Easy Height's efficiency and hygiene. The large trapway design minimizes the risk of
clogs, but proper use and maintenance are still important.
Remember to consult the manufacturer's manual for detailed
instructions and any model-specific guidelines. Professional installation is recommended to
ensure optimal performance and adherence to local plumbing codes.
Caroma Sydney Smart II Easy Height Elongated Dual-flush Toilet Part Numbers
-
Tank: 302100W
-
Bowl: 305102W
Warranty
2-Year Limited Warranty
See Full
Warranty Page
