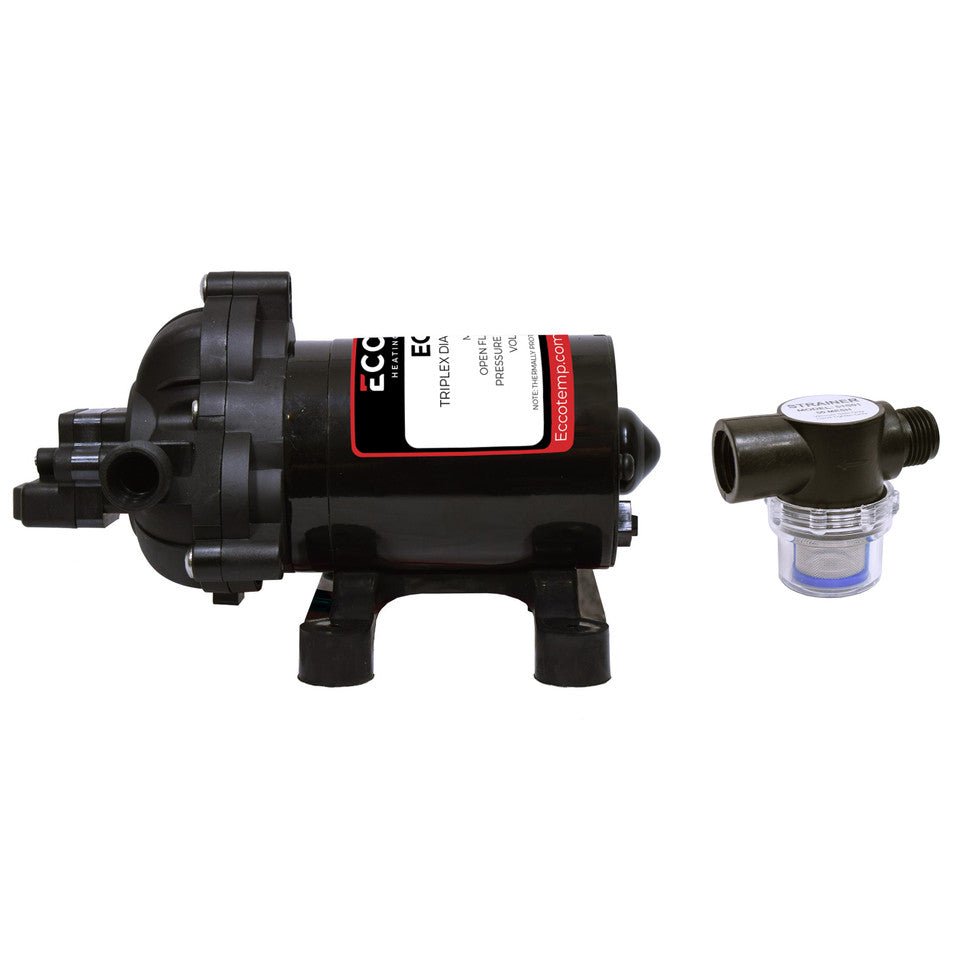

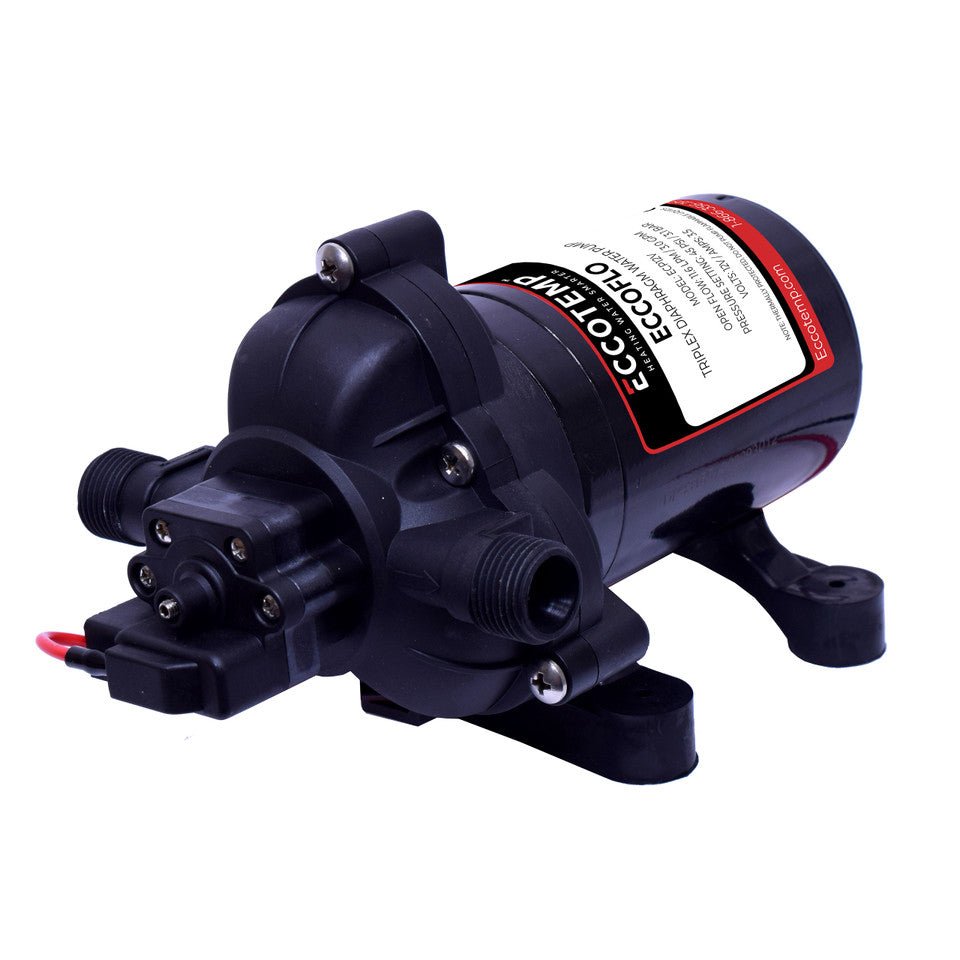

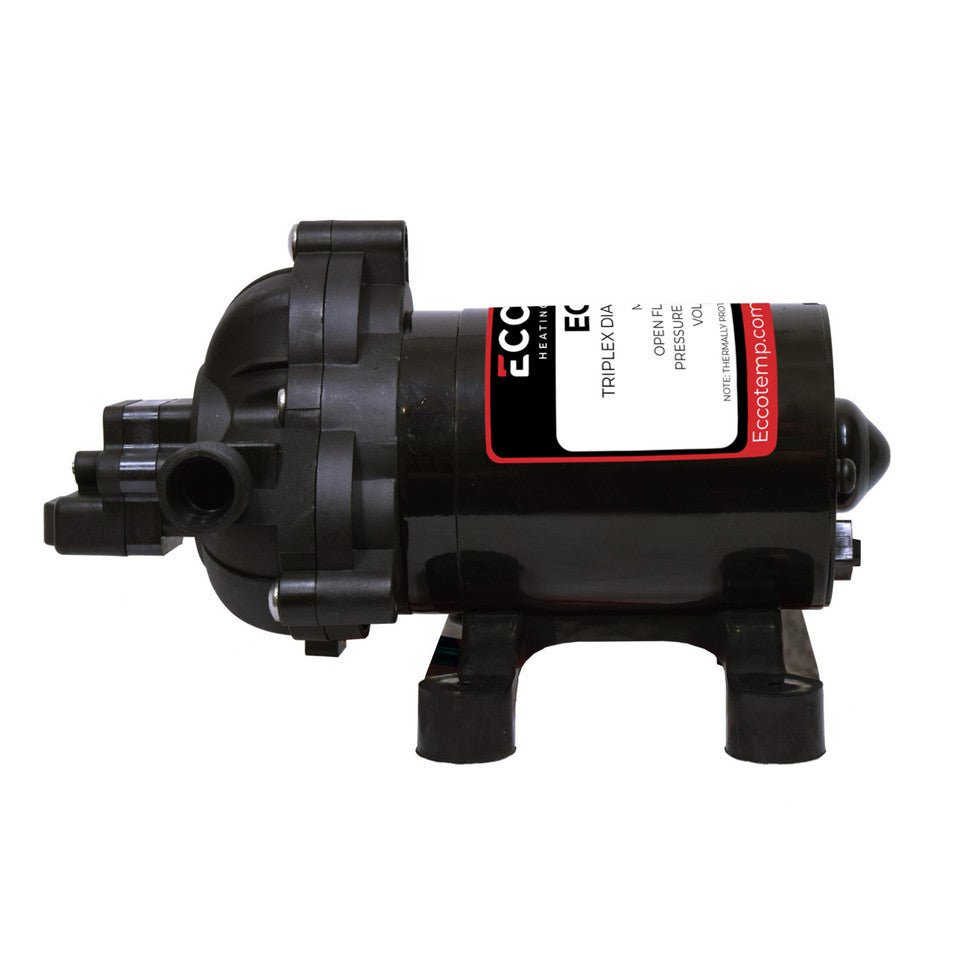

EccoFlo Triplex Diaphragm 12V Water Pump and Strainer
- Powerful 2.9 GPM flow rate with 50 PSI maximum pressure
- Durable thermoplastic construction with corrosion-resistant materials
- Self-priming and run-dry capable design
- Compact 8" x 6" x 6" footprint for easy installation
- 12V DC power with low 3.5 amp draw
- Push-to-connect inlet and outlet connections
- Operating temperature range: 32°F to 140°F
- Includes hardware and pump hookup components
- CE certified with 2-year manufacturer warranty
- Lightweight at just 4.2 pounds for portability
More About the EccoFlo Water Pump from Eccotemp
This high-efficiency water pump from Eccotemp delivers an impressive 2.9 gallons per minute flow rate while maintaining consistent 50 PSI pressure. The advanced triplex diaphragm design ensures smooth, reliable operation even under demanding conditions. Its self-priming capability allows for immediate functionality without manual priming, while the run-dry protection safeguards against accidental damage.
Construction and Durability
Material Excellence
Built with premium thermoplastic components and corrosion-resistant materials, this pump is engineered for longevity. The robust construction withstands various environmental conditions while remaining lightweight at just 4.2 pounds.
Technical Design
The pump features a sophisticated internal bypass system that maintains consistent pressure and protects against excessive load. Push-to-connect fittings ensure secure, leak-free connections while simplifying installation and maintenance.
Versatile Applications
Multiple Use Cases
The pump excels in various scenarios:
- RV and marine applications
- Outdoor shower systems
- Portable water heaters
- Agricultural spraying
- General water transfer
- Portable water delivery systems
Installation and Operation
The compact 8" x 6" x 6" dimensions allow for flexible mounting options, while the 12V DC power system draws only 3.5 amps, making it highly energy efficient. The pump operates effectively across a temperature range of 32°F to 140°F, ensuring reliable performance in diverse conditions.
Included Components
Each unit comes complete with:
- Integrated strainer for debris protection
- Mounting hardware
- Connection fittings
- Complete installation guide
Quality Assurance
Backed by CE certification and a comprehensive 2-year manufacturer warranty, the EccoFlo pump represents Eccotemp's commitment to quality and reliability. The included technical support ensures users can maximize the pump's potential across its service life.
Technical Specifications
Performance
- Maximum Flow Rate: 2.9 GPM
- Maximum Pressure: 45 PSI1
- Maximum Horsepower: 1/7 HP
- Vertical Lift: 10 feet
- Head Pressure: 10 feet
Electrical
- Voltage: 12V DC1
- Amperage Draw: 3.5 amps
- Power Type: Electric DC
- Cord Length: 6 feet
Physical Dimensions
- Height: 8 inches
- Width: 6 inches
- Depth: 6 inches
- Weight: 4.2 pounds
Materials & Construction
- Housing Material: Thermoplastic
- Impeller Material: Plastic
- Connection Type: Push-to-connect/push-on inlet and outlet1
- Pump Type: Triplex Diaphragm
Operating Conditions
- Temperature Range: 32°F to 140°F
- Self-Priming: Yes1
- Run-Dry Capable: Yes
Package Contents
- 12V Pump

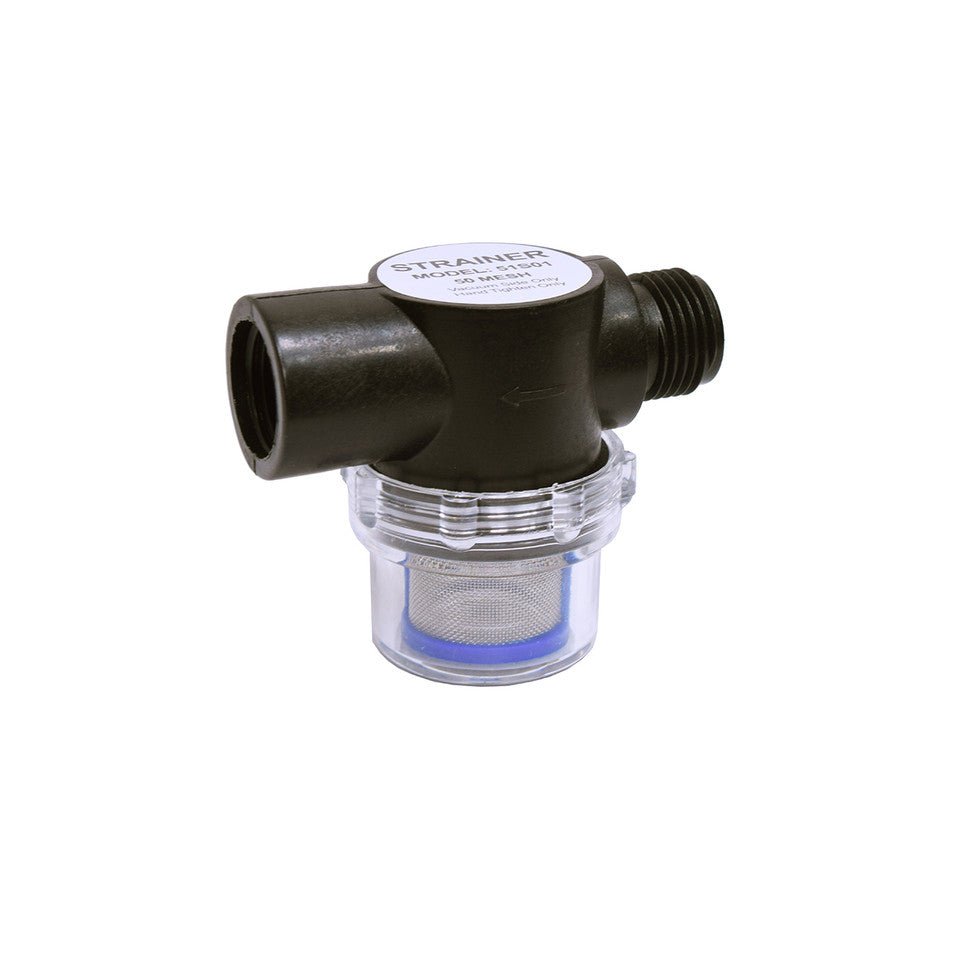

- Sediment Strainer
- Two 1/2" Threaded Adapters
- One 1/2" 90° Barbed Adapter
- One 1/2" Barbed Adapter
- Red & Black Alligator Clips
Certifications & Warranty
- Certifications: CE Certified
- Warranty Period: 2 years
- Return Policy: 90 days
