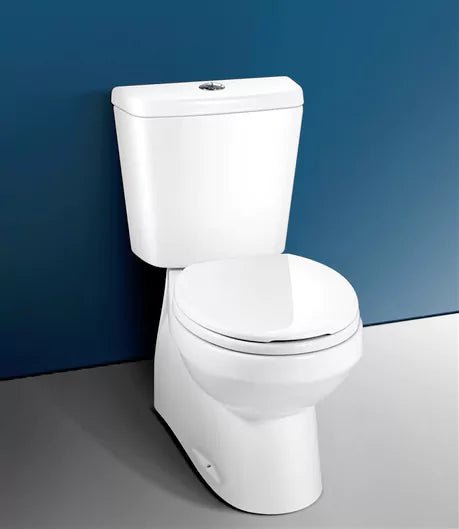

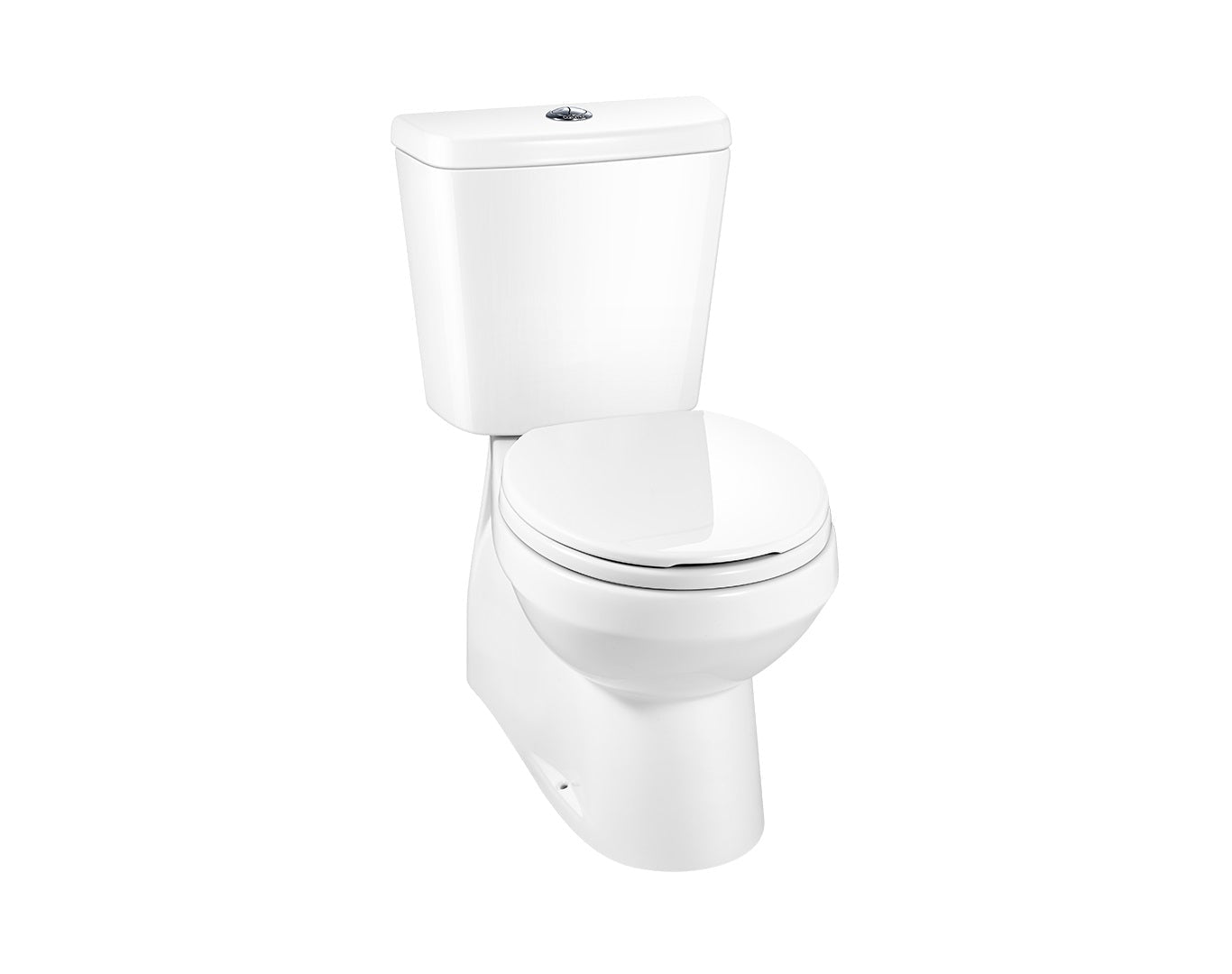

Caroma Sydney Back Outlet Dual-Flush Toilet
The Sydney Smart Back Outlet utilizes advanced washdown
technology, efficiently removing waste before water release. This design minimizes blockages in
both the fixture and plumbing system.
Space-Efficient Design
The rear discharge
system offers significant space-saving benefits:
- Multi-Story Applications: Reduces
inter-floor space requirements.
- Basement Installations: Eliminates need for
raised bathroom floors.
- Compact Profile: Allows for flush wall
placement, enhancing bathroom aesthetics.
Clog Prevention
Features Caroma's signature
large trapway, double the industry standard size, significantly reducing the risk of
clogs.
Flexible Installation
Floor-mounted with rear
outlet connection, suitable for small bathrooms or where standard floor installation is not
feasible.
Durable Construction
Made of vitreous china
for longevity and ease of cleaning.
Efficient Performance
- Dual flush volumes: 1.28/0.8 gallons (4.8/3
liters)
- WaterSense labeled for water
efficiency
-
MaP Premium certified at 900 grams
- Bowl height: 15.5 inches
-
Soft-close round seat is included
This model combines water efficiency, practical design, and
reliable performance, suitable for various residential and commercial applications..
Installation Guidelines
Preparation:
- Ensure the waste outlet in the wall aligns with the toilet's back outlet.
- Verify that the center of the waste pipe is 7" (180mm) above the finished floor level.
Rough-In:
- This model is designed for a 4" (100mm) waste pipe.
- Confirm the rough-in measurement from the finished wall to the center of the waste pipe.
Mounting:
- Use the provided floor-mounting brackets to secure the toilet.
- Ensure the toilet is level both horizontally and vertically using a spirit level.
Connections:
- Connect the toilet's outlet to the wall connection using an appropriate seal or gasket.
- Install the supplied pan collar to ensure a watertight seal.
Water Supply:
- Connect the water supply to the fill valve, ensuring it's tightened securely to prevent leaks.
- The recommended operating water pressure range is 20-80 psi.
Sealing:
- Apply a high-quality silicone sealant around the base of the toilet and at the wall junction.
Final Steps:
- Install the toilet seat according to the manufacturer's instructions.
- Perform a thorough leak check and test flush before use.
Note: Always refer to the detailed installation manual provided with the product and
adhere to local plumbing codes for a successful installation.
Caroma Sydney Smart Back Outlet Part Number:
-
Tank: 622322
-
Bowl: 609450
Remember to consult the detailed installation manual provided by Caroma and consider professional
installation if you're not confident in your DIY skills. Proper installation is key to ensuring the
toilet's optimal performance and water efficiency.
