Sealin Hatch Pre-built Insulated Attic Access Door for Attic Access thru Attic Wall
Insulated Knee-Wall Attic Access Door
Sealin Hatch Attic Knee-Wall Access
Sealin' Hatch Logo
Sealin Hatch Pre-built Insulated Attic Access Door for Attic Access thru Attic Wall
Insulated Knee-Wall Attic Access Door
Sealin Hatch Attic Knee-Wall Access
Sealin' Hatch Logo
382

Sealin' Hatch Insulated Knee-Wall Door

$168.99 $151.17

  • Ideal for New Builds & Remodels
  • No Assembly Required
  • No Rough Framing Needed
  • Available in 16" or 24" on-center framing
  • R-13 Recycled Denim Fiber Insulation Comes Pre-Attached
  • Energy-Saving Weather Stripping
  • Sturdy Construction
  • Pre-primed Trim Door Panel ready to (sand and) Paint after Installation

Helpful Links:

Access Door Framing Guide

Link to Attic Access Door Page


Sealin' Hatch Insulated Knee-Wall Door for Attic Access

The Sealin' Hatch Knee-Wall Attic Access Door comes completely assembled. This insulated attic access panel system is designed to save builders and homeowners time, energy, and money when building or remodeling. The Knee-Wall Attic Access Door is designed for easy, occasional through-the-wall attic access.

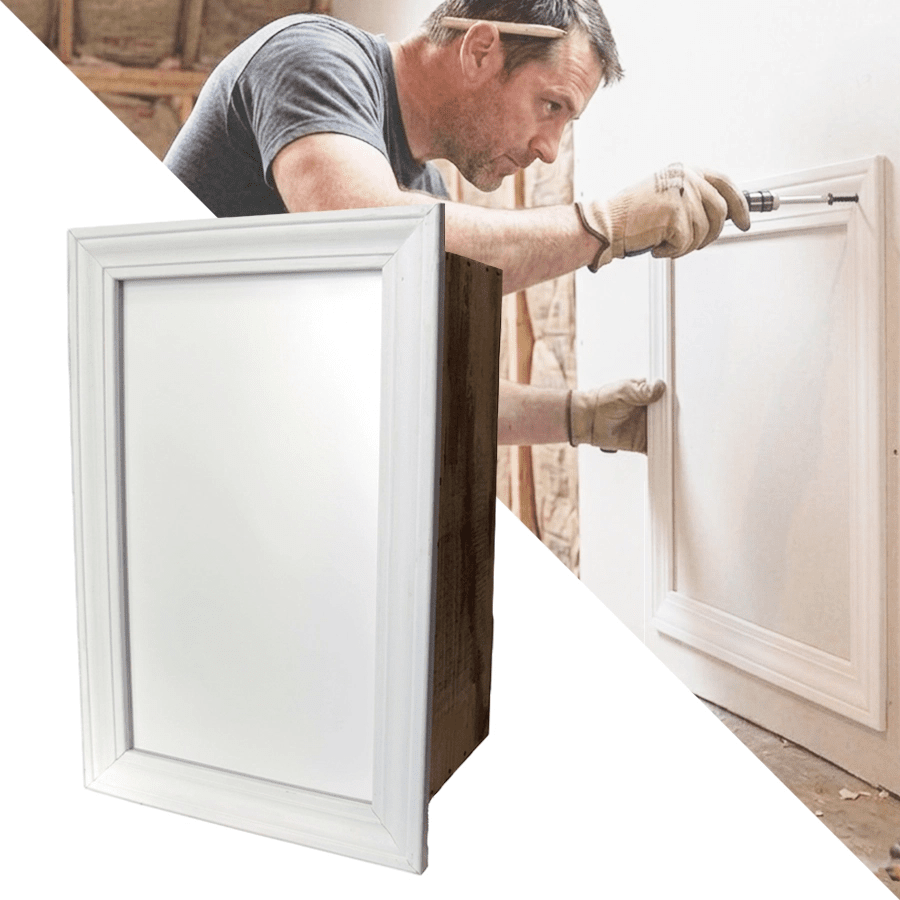

The Sealin' Hatch Insulated Knee-Wall Door installs into a rectangular opening in your attic knee-wall, between and mounted to wall studs. Pre-built out of the box, just insert it into the properly sized opening and screw through the trim and drywall into the studs.

To enter the attic, remove the screws and the insulated panel. After exiting the attic, slide the insulated panel back into the opening and re-insert the screws.  This design is a cost-effective solution for occasional/maintenance access to your attic, rather than frequent access.



24" On Center = 22.5" x 30.5" rough opening size.

16" On Center = 14.5" x 22.5" rough opening size.

Please Note:

The Knee-Wall  Door is a one-piece product intended for periodic, infrequent access - specifically for access for maintenance and inspections. Four screws are included for fastening it to the wall studs between which it is inserted. To gain access, the screws are removed and then refastened afterward. This knee-wall attic access door is not intended for frequent/regular access such as for storage. (On the other hand, the ceiling hatch is a two-piece product with gravity providing the closure, and thus lends itself to more frequent access.)

Click here for the ceiling version: Sealin Hatch Insulated Attic Hatch

Sizes and R-Value

Sealin' Hatch Knee Wall Door Frequently Asked Questions

What is a knee wall door?

A knee wall door is an access panel that's installed straight into a knee wall. A knee wall is the short vertical wall in finished attics, Cape Cod-style houses, and bonus rooms that separates conditioned living space from the unconditioned attic area behind the wall. Unlike ceiling hatches that open down toward the ground, knee wall doors open horizontally through the wall and are a great choice when there is attic storage or other mechanical components behind a sloping roofline. The version made by Sealin' Hatches can be installed right between wall studs without having to construct any type of framing around it. This product will install on 16" or 24" on-center stud spacing.

Why is it called a knee wall?

This access door was named due to its height. Typically, a knee wall is approximately 2 to 3 feet in height, which is approximately knee-high when you stand next to it. These shorter walls are formed by a roofline slope meeting the floor. They hide the poor, difficult-to-utilize triangular areas while providing support for the roof rafter above. It's a structural term that was borrowed using the simple visual analogy, not referencing any mechanical hinges or joints.

What are the benefits of a knee wall access door?

Appropriately sized access doors in a knee wall provide a much easier and ergonomically safe way to enter a side attic crawl space. Beyond ergonomics, the real value in an insulated and sealed knee wall door is its ability to help maintain the home's thermal envelope by sealing off the conditioned space from the unconditioned attic. Due to the fact that Sealin' Hatch's version has R-13 insulation already attached and no need for any cutting or custom carpentry, it helps save installation time on both new build and remodeled projects.

Does a knee wall door need to be fire rated?

Most single-family residences will not have a fire rating requirement for their knee wall access door, unless it provides access to a shared attic space with fire separation requirements (e.g., multi-family and/or townhouse construction), where a fire-rated assembly is required between units. Those situations would normally specify a specialty fire-rated door instead of a standard insulated panel. All other typical single-family residential attics can meet code without needing a fire rating for Sealin' Hatch's standard knee wall door.

Do knee wall access doors need to be insulated?

Yes. According to IECC Section R402.2.4, any access door(s) between conditioned and unconditioned spaces shall be weatherstripped and insulated to a minimum extent equal to that of the insulation provided on the surrounding wall surface(s). If you skip insulating these areas, it creates a thermal bridge that undermines all of the remaining insulation in your wall cavities, even if the cavities themselves are properly filled. Sealin' Hatch's Knee Wall Door comes with R-13 recycled fiber insulation already attached, along with weatherstripping, to match typical 2×4 wall cavity insulation values.

What's the best knee wall door for attic access?

The best options for a knee wall door are those that are comparable to or higher than your wall's existing insulation R value and are well-sealed with weatherstripping. Another important consideration is whether the door unit fits your framing without requiring any custom carpentry. As knee wall doors are intended for occasional maintenance access versus everyday usage, a simple, one-piece panel that installs with screws is generally more practical than any hinged/swinging designs. Sealin' Hatch offers this with their pre-assembled, pre-primed R-13 panel offered in code-compliant 22.5" × 30.5" and smaller 14.5" × 22.5" space-saving versions.


Size
Vendors: Sealin Hatch SKU: SHW-16

  • Ideal for New Builds & Remodels
  • No Assembly Required
  • No Rough Framing Needed
  • Available in 16" or 24" on-center framing
  • R-13 Recycled Denim Fiber Insulation Comes Pre-Attached
  • Energy-Saving Weather Stripping
  • Sturdy Construction
  • Pre-primed Trim Door Panel ready to (sand and) Paint after Installation

Helpful Links:

Access Door Framing Guide

Link to Attic Access Door Page


Sealin' Hatch Insulated Knee-Wall Door for Attic Access

The Sealin' Hatch Knee-Wall Attic Access Door comes completely assembled. This insulated attic access panel system is designed to save builders and homeowners time, energy, and money when building or remodeling. The Knee-Wall Attic Access Door is designed for easy, occasional through-the-wall attic access.

The Sealin' Hatch Insulated Knee-Wall Door installs into a rectangular opening in your attic knee-wall, between and mounted to wall studs. Pre-built out of the box, just insert it into the properly sized opening and screw through the trim and drywall into the studs.

To enter the attic, remove the screws and the insulated panel. After exiting the attic, slide the insulated panel back into the opening and re-insert the screws.  This design is a cost-effective solution for occasional/maintenance access to your attic, rather than frequent access.



24" On Center = 22.5" x 30.5" rough opening size.

16" On Center = 14.5" x 22.5" rough opening size.

Please Note:

The Knee-Wall  Door is a one-piece product intended for periodic, infrequent access - specifically for access for maintenance and inspections. Four screws are included for fastening it to the wall studs between which it is inserted. To gain access, the screws are removed and then refastened afterward. This knee-wall attic access door is not intended for frequent/regular access such as for storage. (On the other hand, the ceiling hatch is a two-piece product with gravity providing the closure, and thus lends itself to more frequent access.)

Click here for the ceiling version: Sealin Hatch Insulated Attic Hatch

Sizes and R-Value

Sealin' Hatch Knee Wall Door Frequently Asked Questions

What is a knee wall door?

A knee wall door is an access panel that's installed straight into a knee wall. A knee wall is the short vertical wall in finished attics, Cape Cod-style houses, and bonus rooms that separates conditioned living space from the unconditioned attic area behind the wall. Unlike ceiling hatches that open down toward the ground, knee wall doors open horizontally through the wall and are a great choice when there is attic storage or other mechanical components behind a sloping roofline. The version made by Sealin' Hatches can be installed right between wall studs without having to construct any type of framing around it. This product will install on 16" or 24" on-center stud spacing.

Why is it called a knee wall?

This access door was named due to its height. Typically, a knee wall is approximately 2 to 3 feet in height, which is approximately knee-high when you stand next to it. These shorter walls are formed by a roofline slope meeting the floor. They hide the poor, difficult-to-utilize triangular areas while providing support for the roof rafter above. It's a structural term that was borrowed using the simple visual analogy, not referencing any mechanical hinges or joints.

What are the benefits of a knee wall access door?

Appropriately sized access doors in a knee wall provide a much easier and ergonomically safe way to enter a side attic crawl space. Beyond ergonomics, the real value in an insulated and sealed knee wall door is its ability to help maintain the home's thermal envelope by sealing off the conditioned space from the unconditioned attic. Due to the fact that Sealin' Hatch's version has R-13 insulation already attached and no need for any cutting or custom carpentry, it helps save installation time on both new build and remodeled projects.

Does a knee wall door need to be fire rated?

Most single-family residences will not have a fire rating requirement for their knee wall access door, unless it provides access to a shared attic space with fire separation requirements (e.g., multi-family and/or townhouse construction), where a fire-rated assembly is required between units. Those situations would normally specify a specialty fire-rated door instead of a standard insulated panel. All other typical single-family residential attics can meet code without needing a fire rating for Sealin' Hatch's standard knee wall door.

Do knee wall access doors need to be insulated?

Yes. According to IECC Section R402.2.4, any access door(s) between conditioned and unconditioned spaces shall be weatherstripped and insulated to a minimum extent equal to that of the insulation provided on the surrounding wall surface(s). If you skip insulating these areas, it creates a thermal bridge that undermines all of the remaining insulation in your wall cavities, even if the cavities themselves are properly filled. Sealin' Hatch's Knee Wall Door comes with R-13 recycled fiber insulation already attached, along with weatherstripping, to match typical 2×4 wall cavity insulation values.

What's the best knee wall door for attic access?

The best options for a knee wall door are those that are comparable to or higher than your wall's existing insulation R value and are well-sealed with weatherstripping. Another important consideration is whether the door unit fits your framing without requiring any custom carpentry. As knee wall doors are intended for occasional maintenance access versus everyday usage, a simple, one-piece panel that installs with screws is generally more practical than any hinged/swinging designs. Sealin' Hatch offers this with their pre-assembled, pre-primed R-13 panel offered in code-compliant 22.5" × 30.5" and smaller 14.5" × 22.5" space-saving versions.
