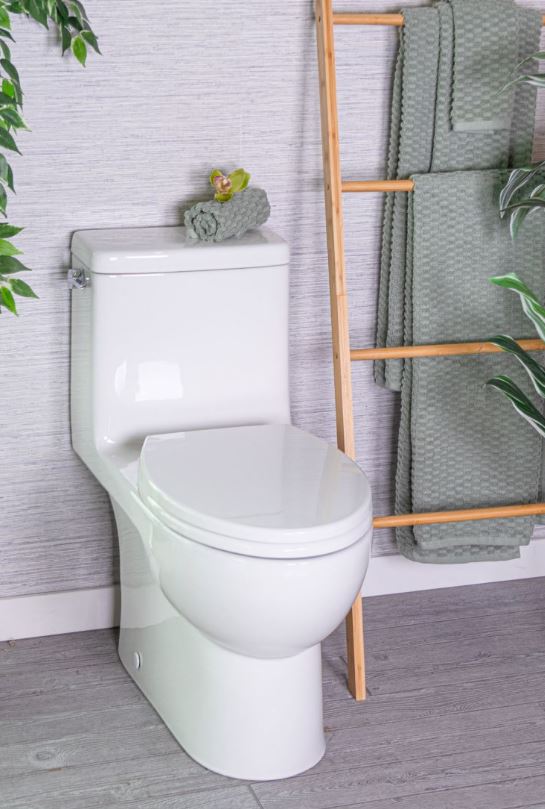

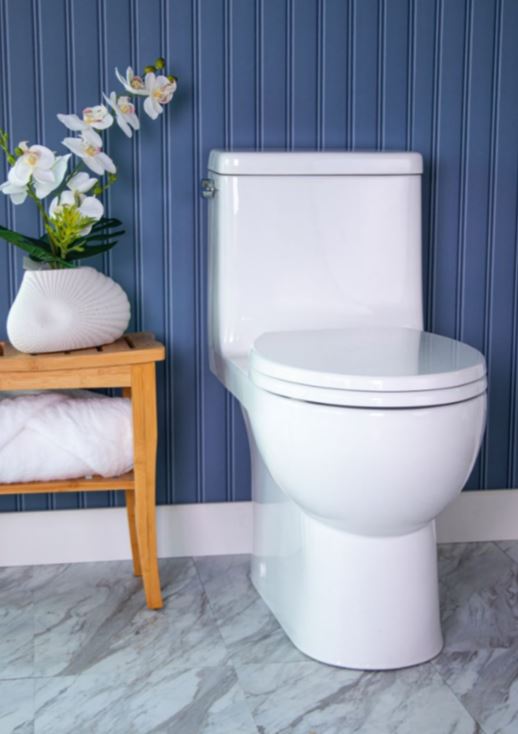

Caroma Caravelle Smart One Piece (Lever) Dual-Flush Toilet

Caravelle Smart One Piece Dual-Flush Lever (989100)

The Caroma Caravelle Smart One Piece (Lever) Dual-Flush Toilet is a high-efficiency, water-saving fixture that combines modern design with exceptional performance. This innovative toilet features a dual-flush system, allowing users to choose between a full or half flush depending on their needs, resulting in significant water savings.:

Washdown Technology: The Caravelle Smart utilizes gravity-fed washdown technology, which forcefully pushes waste out first, followed by water. This approach differs from typical siphonic toilets and dramatically minimizes clogs both in the fixture and throughout the plumbing system.

Non-Clog Design: Engineered for maximum efficiency, the Caravelle Smart features a shorter, wider trapway that's over twice as large compared to standard toilets. This design makes clogging virtually impossible.

Smart Connect Installation: The Caravelle Smart incorporates Caroma's patented Smart Connect system, which allows for flexible installation. Its offset adapter can be adjusted to fit 10" or 12" rough-ins, or anywhere in between.

Smart Glaze Technology: The toilet's vitreous china surface features nanoscale technology that repels liquids and oils while inhibiting the spread of germs. This Smart Glaze makes the Caravelle Smart easier to clean and maintain.

Caroma Caravelle Smart One Piece (Lever) Part Numbers: Left Lever Toilet: 989100 or Right Lever Toilet: 989100-R

The Caroma Caravelle Smart One Piece (Lever) Dual-Flush Toilet provides exceptional comfort while meeting ADA requirements. Its one-piece design contributes to a sleek, modern aesthetic that complements various bathroom styles.

Installation Guidelines

1. Prepare the floor flange: Ensure the closet flange is accurately set out, as this is crucial for proper installation.
2. Install the offset adapter: Position the wax ring and bolts, then secure the Caroma offset adapter to the floor flange.
3. Prepare the toilet: Apply a bead of caulking on the base of the toilet.
4. Position the toilet: Align the bowl over the offset adapter and lower it into position uniformly.
5. Secure the toilet: Use suitable fasteners to secure the closet bowl through the small holes at the back of the toilet base.

Additional Considerations

• Water supply: Connect the toilet to the water supply using standard fittings.
• Leveling: Ensure the toilet is level on the floor, using shims if necessary.
• Clearance: Provide adequate space around the toilet for comfortable use and easy cleaning.

Lever Handle Installation

The Caravelle Smart One Piece (Lever) is available with the lever handle on the left (989100) or right (989100-R) side of the tank. For lever handle maintenance or replacement:

1. Pull out the handle, possibly wiggling it to ease removal.
2. Insert the new handle into the tank hole.
3. Replace the gaskets in the correct order.
4. Secure the handle by tightening the nut, holding the handle in the proper position while doing so.

Remember to consult the detailed installation manual provided by Caroma and consider professional installation if you're unsure about any steps. Proper installation ensures optimal performance and water efficiency of your Caroma Caravelle Smart One Piece (Lever) Dual-Flush Toilet.

Watch helpful videos on Caroma one-piece toilets

Warranty

2-Year Limited Warranty

See Full Warranty Page

For California Residents

California Proposition 65

Specifications Overview

• Part Numbers:
  • Left Lever Toilet: 989100
  • Right Lever Toilet: 989100-R
• Flush System: Dual flush with 1.28/0.8 gallons per flush (4.8/3 liters per flush)
• Flush Activation: Side lever (push down for full flush, pull up for half flush)
• Bowl Type: One-piece, elongated
• Weight: 103 lbs (47.0 kg)
• Height: ADA compliant with 16.5 inch bowl height
• Rough-in: Adjustable for 10" to 12" (255mm to 305mm)
• MaP Rating: Premium certified at 1000 grams

Dimensions

• Length: 29-15/16" (760mm)
• Width: 14-1/8" (360mm)
• Height: 30-3/8" (770mm) approximately

Design Features

• Smart Glaze: Nano-technology coating for easier cleaning and improved hygiene
• Skirted Design: Fully concealed trapway for a sleek appearance and easier cleaning
• Seat: Includes 326611W Soft Close-Detachable Seat
• Lever Position: Available with lever on left (989100W) or right (989100W-R) side of tank

Additional Resources

• Technical Specs

• What's In The Box
• Parts and Accessories
• Installation Guide
